Pre-Retrofit Energy Analysis for LED Retrofits

When planning an LED lighting upgrade, pre-retrofit energy analysis is the first and most important step. It helps you understand your current system’s energy use, lighting quality, and potential savings. This process ensures your project is well-planned, cost-effective, and aligned with energy codes and rebate requirements.

Key Takeaways:

• Energy Savings: LEDs can cut lighting energy use by 30–50%, with some projects saving up to 75%.
• Cost Savings: Many retrofits pay for themselves in under 3–5 years through reduced energy bills, lower maintenance, and rebates.
• Lighting Quality: Analysis ensures lighting meets user needs and avoids over- or under-lighting.
• Rebates & Incentives: Proper documentation helps secure tax deductions and utility rebates, reducing upfront costs.

By assessing your current system, measuring energy use, and identifying areas for improvement, you can confidently plan a retrofit that delivers long-term savings and better lighting performance.

Key Steps in Pre-Retrofit Energy Analysis

Conducting a Site Assessment

Every successful LED retrofit starts with a thorough site assessment that captures all the details of your current lighting setup. This includes measuring illuminance levels, counting lamps and ballasts, noting operating hours, and mapping out the control systems and wiring layout.

Accurate documentation is crucial here. Use proper tools to measure light levels and room dimensions, and gather input from employees to ensure the assessment aligns with how the space is actually used. These measurements provide the foundation for selecting and positioning new LED fixtures.

But it’s not just about the equipment. You also need to understand how the lighting system is used day-to-day. Things like extreme temperatures, exposure to chemicals, or high moisture levels can impact how well fixtures perform over time. Facility drawings, evacuation plans, and historical data on utility bills, lighting equipment, and maintenance costs can provide valuable context for the retrofit.

Once you’ve built a detailed site profile, the next step is to measure baseline energy usage to guide your retrofit planning.

Measuring Baseline Energy Consumption

To figure out the potential savings from an LED retrofit, you first need to establish an accurate energy baseline. This involves analyzing utility bills, conducting energy audits, and documenting each fixture's type, wattage, and usage.

Review 12 to 24 months of utility bills and perform an audit to log fixture details like quantity, wattage, and operating hours. This gives you a clear picture of current energy consumption.

LED retrofits can lead to impressive energy savings. For example, United States Cold Storage’s Hazleton facility cut lighting energy costs by 93% after switching to smart LED lighting. By replacing 465-watt high-pressure sodium lamps with 160-watt LED fixtures, they recouped their investment in just 14.6 months. Such real-world examples highlight the financial benefits of a well-planned retrofit.

Evaluating Lighting Quality and Usage

Energy efficiency is important, but so is ensuring the lighting meets occupant needs. Use an illuminance meter to check light levels and verify compliance with task requirements and building codes. Older systems often provide either too much light - wasting energy - or too little, which can hinder productivity.

Changes in how a space is used over time can also create gaps between the original lighting design and current needs. Evaluate lighting performance by considering factors like color quality and user feedback to identify any mismatches. It’s worth noting that some early LED systems (installed between 2015 and 2020) may now be showing signs of wear, making them candidates for an LED-to-LED upgrade.

Identifying Occupancy and Control Opportunities

Understanding how and when spaces are used can reveal ways to save energy through smart lighting controls. For instance, areas like conference rooms, private offices, and restrooms often stay lit when unoccupied. Installing occupancy sensors in these spaces can significantly cut down on wasted energy.

Daylight is another area to consider. Spaces near windows, skylights, or glass doors can benefit from daylight harvesting systems, where sensors adjust electric lighting based on natural light levels. This approach, combined with continuous dimming, can reduce lighting energy use by 30% to 40%.

Take stock of the existing control systems to see what upgrades might be needed to integrate smart controls. Many older buildings rely on basic on/off switches, which can be enhanced with features like dimming, scheduling, and networked lighting management. While switching to LEDs already drives substantial savings, adding smart controls like occupancy sensors and daylight harvesting can take energy optimization to the next level. These insights will guide your decisions on fixtures and control systems, ensuring the retrofit delivers the best results.

Tools and Techniques for Data Collection and Analysis

Data Collection Tools

Accurate data is the foundation of a successful pre-retrofit analysis for your lighting system. Here’s a breakdown of essential tools:

• Light meters: These devices measure illuminance levels in foot-candles, helping you assess whether areas are over-lit or under-lit. This ensures you document lighting conditions precisely and meet compliance standards.
• Data loggers: These tools track energy consumption over time, monitoring individual circuits or entire lighting zones. By recording power usage in 15-minute intervals, they reveal peak demand periods and highlight opportunities for better load management.
• Audit templates and mobile apps: These simplify the process of documenting site visits. By capturing details like fixture types, lamp counts, ballast specs, and operating schedules, these tools ensure consistency. Many apps also calculate totals and flag missing data, reducing errors.
• Thermal imaging cameras: These cameras detect failing ballasts and overheating fixtures that aren’t visible during standard inspections. This added layer of detail helps uncover maintenance issues that could impact energy use and system performance.

The data collected using these tools sets the stage for energy modeling, where raw numbers are transformed into actionable insights about savings and performance.

Energy Modeling and Analysis Software

Energy modeling software is critical for translating raw data into projections for energy use, costs, and CO2 emissions. These tools are especially valuable for LED retrofits, as they provide a clear picture of the financial and environmental benefits of proposed upgrades.

• Predictive modeling: This technique creates a virtual representation of your building, using historical energy data to forecast future consumption and utility expenses. Analysts fine-tune these models by comparing predictions to actual utility bills or measured data, ensuring accuracy before and after implementing energy-saving measures.
• Modeling methods: Software often uses a combination of first-principles models (based on physical laws) and empirical models (built from real-world data). Together, these approaches offer more precise projections than basic calculations.

For example, an office building in Washington, D.C. used predictive modeling to identify conservation measures ranging from $600 to $1,100,000. These changes increased its ENERGY STAR score from 66 to 75 and reduced annual utility costs by an estimated $16,200.

"Before the [End-Use Load Profiles] data sets were released, there was limited data available to evaluate aggregate building stock loads. It was especially difficult to capture the effect of diversified loads, requiring us to do significant simplification in our analysis. The release has really changed the game in providing reliable diversified building end-use loads for our building decarbonization studies." - Jared Landsman, Senior Managing Consultant at Energy and Environmental Economics (E3)

Importance of Accurate Documentation

Detailed documentation isn’t just a formality - it’s a cornerstone of effective project planning, compliance, and long-term maintenance. Here’s why it matters:

• Federal incentives: Programs offering tax credits and rebates often require thorough records for qualification and verification. Missing documentation could mean losing access to these benefits, which significantly impact your project’s return on investment.
• Rebate applications: Utility companies and government programs often demand specific technical details, installation photos, and energy consumption data. Many of these programs operate on tight funding cycles or have strict deadlines, so timely and complete documentation is crucial to avoid delays or disqualification.
• Warranty validation: LED manufacturers typically require proof of proper installation and operating conditions to honor warranties. Keeping detailed records ensures you can address any claims, which is vital since lighting accounts for 20-30% of energy use in commercial properties.
• Future maintenance: Comprehensive documentation serves as a valuable reference for facility managers. It helps with troubleshooting, identifying replacement parts, and planning future upgrades or expansions.

"Maintaining detailed records throughout the retrofit process is essential for qualification and verification purposes, making organized compliance documentation practices crucial to success."

To stay organized, businesses should create dedicated filing systems - digital or physical - for all project-related documents. This includes applications, approval notices, product specs, installation records, and verification reports. Such systems ensure easy access for audits, warranty claims, or future planning.

With the data collection and documentation complete, the next step involves calculating actual energy and cost savings to measure the financial impact of your LED retrofit project.

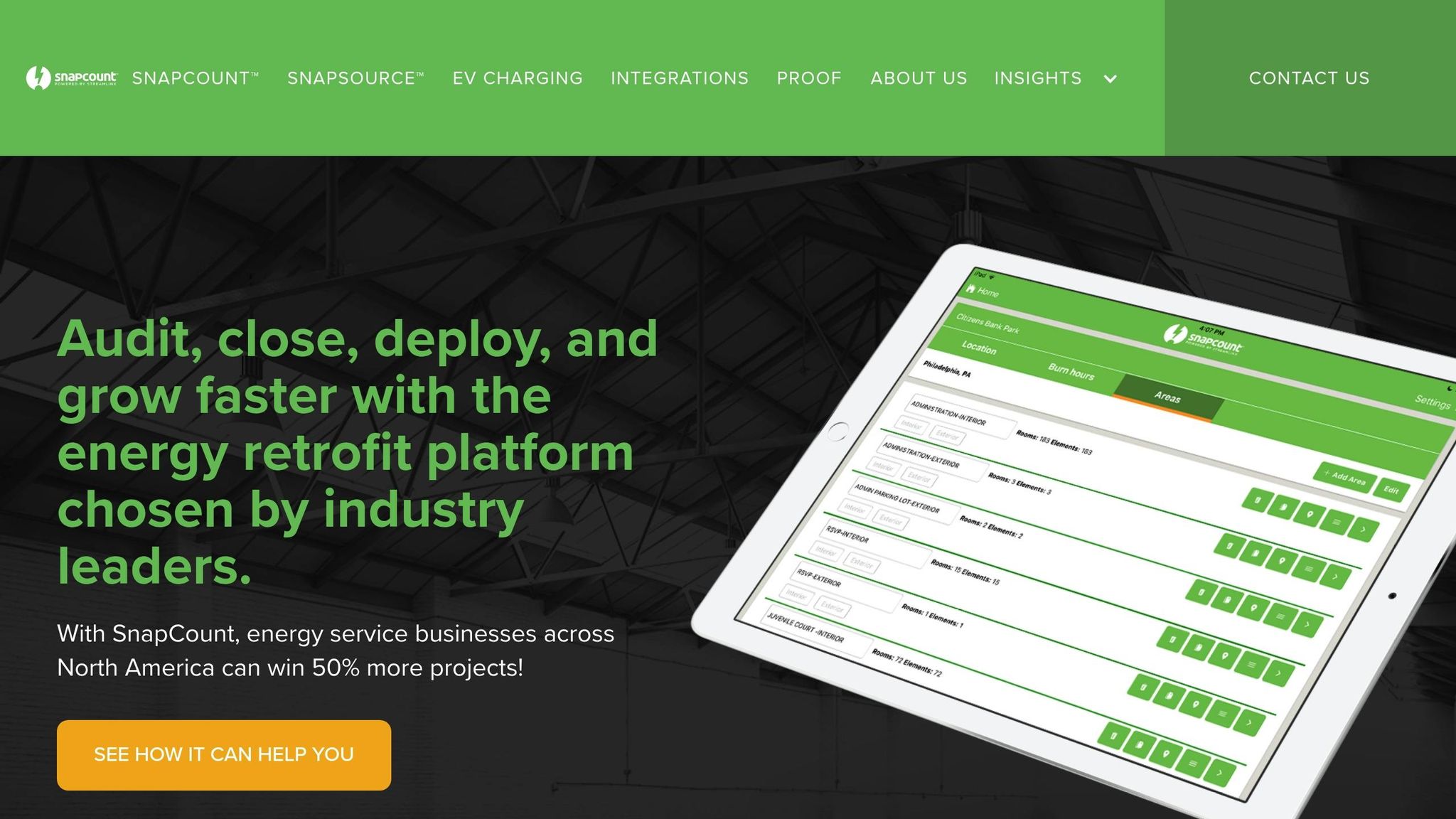

#43 - Efficiencies in the Lighting Retrofit Audit Process with Jeff Seifert of Snapcount

Calculating Energy and Cost Savings

Once you've gathered data from your pre-retrofit assessment, it's time to crunch the numbers. Calculating energy and cost savings is a critical step in building a strong case for your LED retrofit. By turning your data into clear financial projections, you can confidently plan your project and demonstrate its value.

Baseline and Post-Retrofit Energy Use

Start by establishing a solid baseline for your current lighting energy costs. To do this, review 6–12 months of utility bills. This timeframe helps account for seasonal changes in energy use and fluctuations in utility rates. Capturing these variations ensures your projections are as accurate as possible.

Next, conduct a detailed lighting audit. This involves identifying every light fixture in your facility, including its type, wattage, and quantity. Don't rely on rough estimates - use tools like data loggers or conduct occupancy studies to pinpoint actual operating hours.

Here’s an example of how these calculations might look for a 100-fixture warehouse:

• Existing system: 200,604 kWh annually
• LED retrofit: 65,700 kWh annually
• Annual energy savings: 134,904 kWh (a 67% reduction)
• At $0.12/kWh: $16,188 in annual energy savings
• Additional benefits: $3,000 saved on maintenance and $8,000 in utility rebates

This example highlights the potential for dramatic energy savings. Many industrial facilities report lighting cost reductions of 50–90% after switching to LEDs. The efficiency boost is even clearer when comparing technologies: a 400-watt metal halide fixture produces about 20,000 lumens, while an LED replacement achieves the same output using only 150 watts.

Financial Metrics for Retrofits

To evaluate whether your LED retrofit is a smart investment, use financial metrics that provide a clear picture of the project's value. Here are some key ones to consider:

• Return on Investment (ROI): This measures how much financial return you’ll get compared to the project cost. Calculate it by dividing annual savings by the total project cost, then multiply by 100 to express it as a percentage.
• Payback Period: This tells you how long it will take to recover your initial investment through energy savings. Simply divide the total project cost by the annual savings.
• Net Present Value (NPV): For a more advanced analysis, NPV accounts for the time value of money by discounting future cash flows. It provides a clearer picture of the long-term economic benefits of your retrofit.
• Savings to Investment Ratio (SIR): This compares the total savings over the project’s lifespan to the initial cost. A ratio above 1.0 shows the project delivers more value than it costs.

While simple payback gives you a quick view of cost recovery, NPV and SIR provide deeper insights into long-term benefits.

Visualizing Savings with Comparison Tables

Comparison tables are an excellent way to communicate the financial impact of your retrofit to stakeholders. Tools like LED ROI calculators let you input details about your current system and proposed LED options to generate savings projections, ROI, and payback periods. For even more advanced tracking, SCADA dashboards can monitor real-time energy use and savings trends, offering a dynamic way to visualize the impact of your retrofit.

For example, SCADA systems can highlight energy reductions during peak hours, giving you a clear view of efficiency gains. One plastics recycling facility reported a 20% drop in energy use after using SCADA analytics to fine-tune operations. Additionally, their automated sorting system, powered by SCADA alerts, identified 80% of potential equipment failures before they happened, boosting overall efficiency.

When creating comparison tables, include key performance indicators such as energy consumption per square foot, cost savings, and maintenance expenses. This approach ensures you capture the full financial picture. As Delta Wye Electric puts it:

"Our experience has shown that facilities often underestimate their savings potential by focusing solely on energy reduction, missing the full financial picture that includes maintenance savings, HVAC load reduction, and available rebates."

Using Pre-Retrofit Analysis for Project Success

Pre-retrofit analysis isn't just about crunching numbers for energy and cost savings - it’s about making smart decisions to set your project up for success. By evaluating existing conditions, this step helps guide everything from selecting the right fixtures to unlocking financial incentives and ensuring long-term results.

Informing Lighting Design and Fixture Selection

With pre-retrofit analysis, you get the data you need to make informed choices about LED fixtures and layout designs. For example, measuring current lighting levels can reveal areas that are over-lit, allowing you to switch to lower-wattage LEDs without sacrificing quality. Comparing these measurements to the recommendations of the Illuminating Engineering Society of North America (IESNA) ensures your space meets proper illumination standards.

When planning a retrofit, it’s important to prioritize your goals - whether it’s cutting energy use, reducing maintenance costs, or improving lighting quality and aesthetics. Real-world examples show how impactful this can be. Take Company C’s manufacturing plant: after retrofitting, they slashed lighting electricity costs by 90% and saw a 20% improvement in spotting imperfections on the production line. These insights don’t just improve functionality - they also highlight the financial and incentive-related benefits tied to careful planning.

Maximizing Rebates and Tax Incentives

Pre-retrofit analysis also plays a critical role in identifying and securing rebates and tax deductions. For instance, the 179D Tax Deduction offers up to $5.81 per square foot for projects that achieve at least 25% site energy savings compared to baseline values. The findings from your analysis are essential for meeting these requirements.

There are two compliance pathways for 179D deductions:

• The Traditional (Modeling) Pathway, which uses energy modeling to compare your project’s savings to a reference building model.
• The Alternative (Measurement) Pathway, which relies on actual energy usage data before and after the retrofit to document improvements.

Here are some real-world examples of 179D success stories from Leyton’s projects:

• A parking garage in North Carolina (416,243 sq. ft.) secured a $253,908.23 tax deduction in 2021.
• An office building in California (109,425 sq. ft.) received a full deduction of $205,719 in 2022 after a gut renovation.
• A high school in Illinois (279,352 sq. ft.) achieved a $502,833.60 deduction in 2020 following upgrades to lighting and boilers.

For smaller commercial and residential projects, the Energy Efficient Home Improvement Credit provides tax credits of up to $3,200 for qualifying upgrades made after January 1, 2023. This includes credits for exterior doors (up to $250 per door, $500 total), windows and skylights (up to $600), and home energy audits (up to $150).

"To qualify for the 179D tax deduction, you need to conduct an energy analysis and assess the energy-saving measures implemented. Consulting with energy efficiency experts or engineering firms with experience in 179D deductions can help you evaluate your building's eligibility and potential savings."

• Leyton

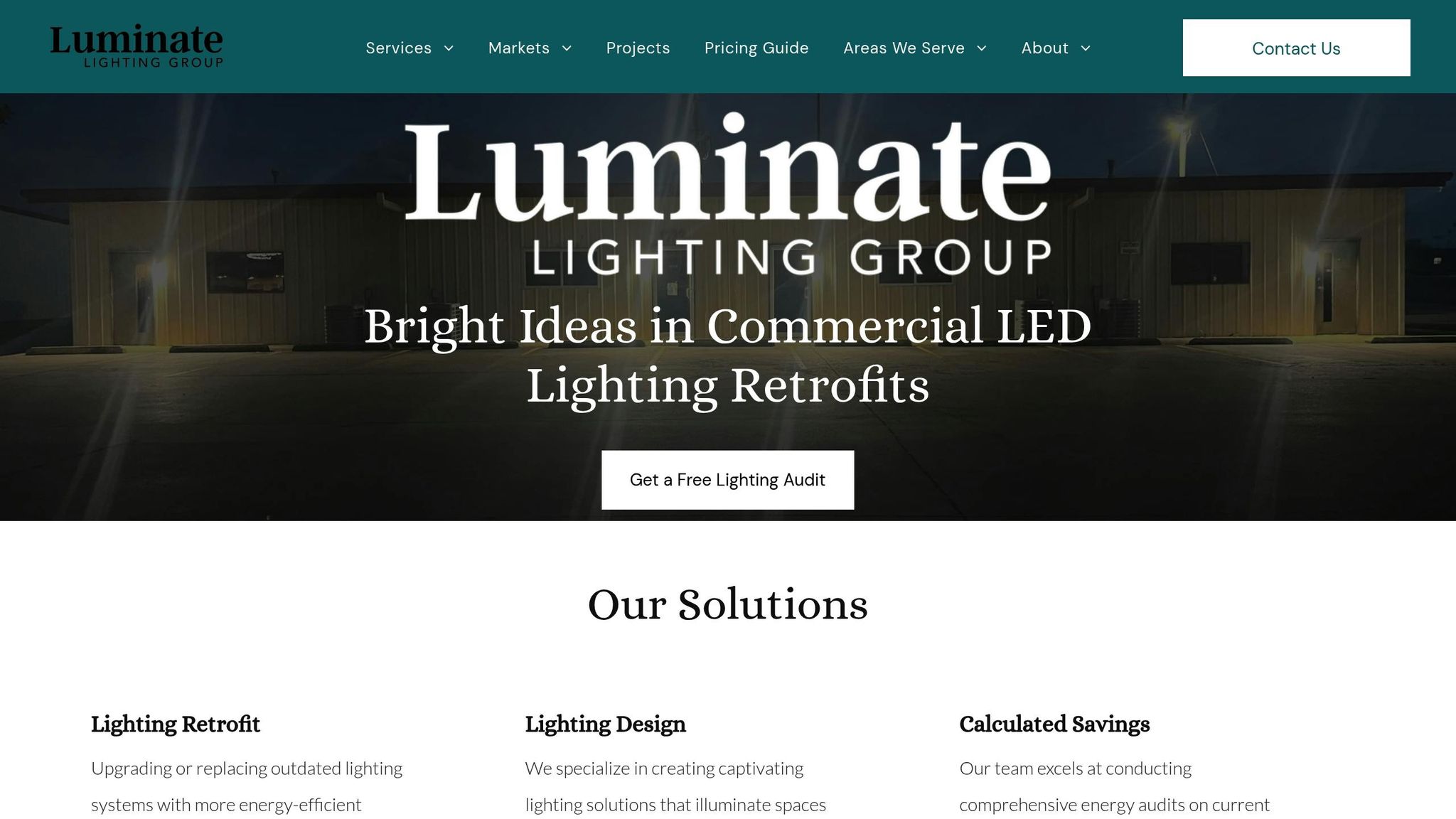

Luminate Lighting Group's Approach

At Luminate Lighting Group, we make pre-retrofit analysis the foundation of every project, ensuring measurable energy savings and cost reductions. We start with free lighting audits for qualifying facilities, establishing detailed energy baselines and uncovering cost-effective opportunities.

Our process goes beyond counting fixtures. We assess occupancy patterns, evaluate current lighting quality, and identify opportunities for controls that can further cut energy waste. This detailed approach shapes our custom lighting designs and fixture specifications, ensuring optimal performance tailored to your needs.

We also simplify the complexities of rebates and tax incentives, including the 179D program. Our energy audits come with the required reports and inspections for incentive applications, and we maintain thorough documentation to support your claims. By leveraging these programs, we help you reduce upfront costs and shorten payback periods.

Whether you’re upgrading a warehouse, office building, healthcare facility, or school, our end-to-end solutions ensure your LED retrofit delivers immediate energy savings while setting you up for long-term benefits. From analysis to installation, we handle everything - meeting energy codes, supporting your sustainability goals, and even offering multi-site discounts to maximize savings across multiple locations.

Conclusion

Pre-retrofit energy analysis is the foundation of any successful LED lighting project. Skipping this crucial step can lead to missed savings, poor fixture choices, and lost financial opportunities. Here's why it matters: high-efficiency LED retrofits can cut lighting energy use by 30-50% at a cost-effective rate. Most projects recoup their costs in under five years, with many achieving payback in less than three years. These aren't hypothetical numbers - they translate into real savings, often reducing a typical office building's total electric bill by 20-25%. This analysis shapes every decision, from selecting fixtures to integrating advanced controls.

A thorough pre-retrofit analysis also uncovers rebates and tax incentives, ensures compliance with lighting standards, and identifies opportunities to incorporate advanced features like occupancy sensors, which can drive even greater savings.

Beyond energy efficiency, LED retrofits deliver environmental benefits. They reduce carbon emissions by 0.012 metric tons of CO2 per square foot annually, aligning with sustainability goals. With LEDs using up to 80% less energy than traditional incandescent bulbs and offering significantly longer lifespans, the long-term advantages are undeniable.

By following the structured methodology described earlier, pre-retrofit analysis connects technical insights with strategic financial planning, making it indispensable for achieving both energy and cost efficiencies.

Key Takeaways

Pre-retrofit analysis serves as a roadmap for project success. It enables informed decisions about fixtures, lighting design, and controls while maximizing rebates and tax incentives. The data collected ensures accurate savings projections and helps avoid expensive missteps.

Compared to other building system upgrades, lighting retrofits stand out. They require less upfront investment and deliver stronger returns, making them highly attractive to building owners and facility managers. With the financial benefits clearly outlined, the case for LED retrofits is hard to ignore.

Success lies in partnering with professionals who understand both the technical and financial aspects of LED projects. At Luminate Lighting Group, we specialize in comprehensive pre-retrofit analysis. Our free lighting audits establish energy baselines, identify cost-saving opportunities, and provide the necessary documentation for rebate and tax incentive applications.

Whether you're managing a warehouse, office building, healthcare facility, or school, the principle remains the same: a thorough assessment leads to better results. By investing in pre-retrofit analysis, you're not just upgrading your lighting - you’re making a smart, strategic move toward energy efficiency, cost savings, and improved facility performance.

FAQs

Why is a pre-retrofit energy analysis important before switching to LED lighting?

A pre-retrofit energy analysis plays a key role in pinpointing potential energy savings, which could be anywhere from 30% to 70%, depending on the project's scope. It sets a clear starting point for evaluating the performance of your LED lighting upgrades and ensures the new system meets energy code requirements.

This analysis allows you to make smart, data-driven decisions about the best retrofit strategies. It helps you boost energy efficiency and get the most value for your investment. Taking this step not only streamlines the shift to LED lighting but also delivers lasting cost savings while improving the overall lighting experience.

How does a pre-retrofit energy analysis help secure rebates and tax incentives for LED lighting projects?

A pre-retrofit energy analysis plays a key role in pinpointing energy-efficient upgrades that can unlock rebates and tax incentives, including utility programs and federal tax credits like the 179D deduction. By assessing your existing lighting system, this analysis ensures your project aligns with the qualifications needed to take full advantage of these financial perks.

Additionally, it delivers the necessary documentation and evidence of energy savings, which are often required when applying for incentives. This not only helps reduce your initial costs but also boosts your return on investment and simplifies the process of securing rebates or tax credits.

What tools and methods are needed to accurately measure energy use before starting an LED lighting retrofit?

To get a clear picture of your energy usage before diving into an LED lighting retrofit, start by using energy meters. These devices help track electricity consumption over a meaningful period, giving you a solid grasp of your current energy demands.

Another key step is building a detailed energy model. By analyzing historical utility bills and operational data, you can establish a dependable baseline for comparison. Pair this with measurement and verification (M&V) standards to ensure your data is consistent and reliable. This approach lets you accurately assess energy performance before and after the retrofit, helping you uncover savings opportunities and make the most out of your LED upgrade.
