Smart Lighting Controls for Energy Dashboards
Integrating smart lighting controls with energy dashboards can reduce energy usage by 10-30%, improving efficiency and cutting costs.
Combining smart lighting controls with energy dashboards can cut energy use by 10-30% while simplifying facility management. This pairing allows real-time monitoring and automated adjustments to reduce waste, lower costs, and improve efficiency. Here's a quick breakdown:
- Smart Lighting Controls: Use occupancy sensors, daylight adjustments, dimming, scheduling, and demand response to automate energy-saving actions.
- Energy Dashboards: Provide real-time data on energy use, track trends, and help identify inefficiencies for targeted improvements.
- Integration Benefits: Centralized data, reduced utility bills, and better decision-making for energy management.
To get started, audit your current lighting setup, identify gaps, and ensure compliance with energy codes. A phased rollout and regular optimization will ensure lasting results.

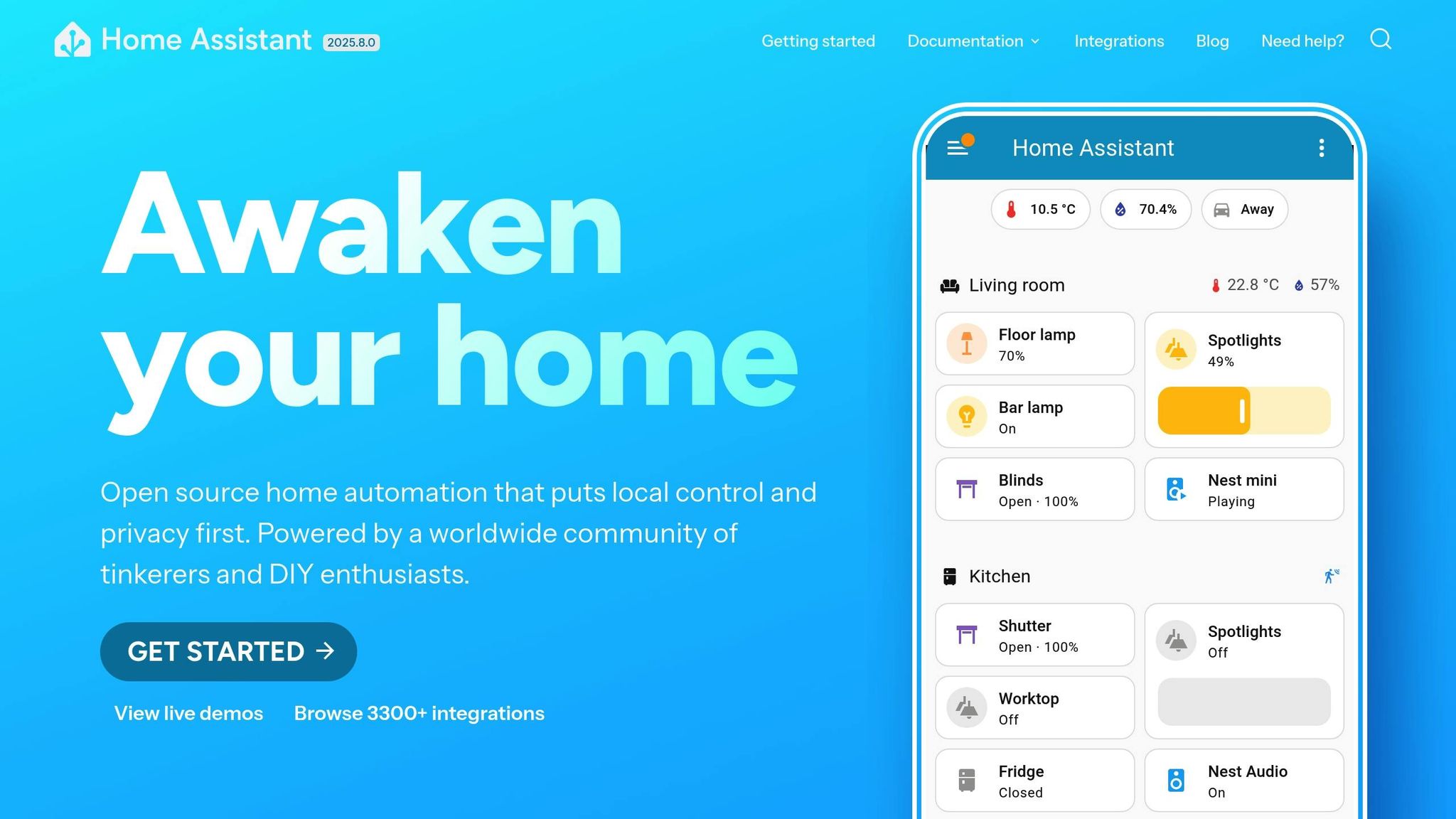

Monitor Your Energy Usage with the Home Assistant Energy Dashboard
Evaluate Your Current Lighting and Control Setup
Before diving into the integration of smart lighting controls with energy dashboards, it’s crucial to assess your current setup. This step helps pinpoint areas for improvement, ensures your project stays on schedule, and keeps costs manageable. A thorough evaluation involves auditing your existing system, identifying technology gaps, and ensuring compliance with relevant regulations.
Perform a Lighting Audit
Start by documenting the details of your facility’s lighting setup. Record the type, wattage, age, and control method for each fixture. Check the placement and functionality of sensors like occupancy detectors and photocells to ensure they’re working as intended.
Next, examine your electrical panels to map out how lighting circuits are controlled. This will help you plan control zones and identify the best points for energy monitoring. Be sure to note any existing building automation systems or lighting control panels, including the manufacturers and model numbers.
Maintenance records can be another valuable resource. They can highlight opportunities to improve efficiency, especially in facilities with aging systems. For instance, older fluorescent lighting with magnetic ballasts often uses much more energy compared to modern LED systems equipped with electronic drivers.
Lastly, gather feedback from building occupants. If certain areas are over-lit or have unnecessary lighting, these insights can guide targeted upgrades.
Find Technology Gaps
Once your audit is complete, compare your current setup to the requirements for smart integration. This process often uncovers missing components essential for connecting lighting controls to energy dashboards. Many facilities, for example, lack the communication infrastructure needed for seamless integration. Check for existing network cables, wireless access points, or building automation wiring that could support smart controls.
Identify areas still using manual switches, as these are prime candidates for automation upgrades. Additionally, consider whether your facility monitors energy use at the lighting circuit level. While whole-building energy data is helpful, submetering specific lighting zones provides the detailed insights that make energy dashboards truly effective.
Don’t overlook your facility’s internet connectivity and network security. Reliable communication with cloud-based energy dashboards depends on a robust network. If bandwidth or cybersecurity appears to be an issue, plan for upgrades before moving forward.
Meet Code Requirements
Energy codes and standards like ASHRAE 90.1 and the International Energy Conservation Code (IECC) outline specific requirements for lighting controls in commercial buildings. These regulations set a baseline for automation, regardless of your energy dashboard goals.
Verify that your current systems comply with ASHRAE 90.1, IECC, and any applicable local codes, particularly for features like automatic shutdown and demand response. Demand response capabilities, which allow buildings to reduce lighting loads during peak demand periods, are increasingly emphasized in updated codes.
It’s also wise to anticipate future code changes. Recent updates to standards like ASHRAE 90.1 and IECC have introduced stricter lighting control requirements, and local jurisdictions may adopt these changes over time. Coordinating with local electrical inspectors early in the process can help clarify specific requirements for your facility and ensure your system remains compliant in the long run.
Plan the Integration Framework
To connect smart lighting controls with energy dashboards effectively, you'll need a well-thought-out integration framework. This involves defining how data flows, identifying key metrics to track, and ensuring secure communication. By selecting the right communication protocols, organizing data points, and safeguarding your system, you can create a seamless and efficient setup.
Choose Communication Protocols
Selecting the right communication protocol is essential for connecting lighting controls with energy dashboards. The choice depends on your facility's infrastructure and future needs:
- BACnet: Ideal for standardized communication across a variety of building systems, especially in facilities with established automation systems.
- Modbus: A good fit for environments with industrial equipment.
- REST APIs: Perfect for cloud-based dashboards, offering flexibility and ease of integration.
- Wireless protocols (e.g., LoRaWAN, Zigbee): Useful in spaces where wiring isn't feasible, though they might introduce slight delays in real-time updates.
For older buildings with existing systems, BACnet might be the most practical option. On the other hand, newer facilities often benefit from REST APIs due to their compatibility with modern, cloud-based infrastructures.
Set Up Data Points
To make raw data meaningful, organize energy data points in a way that provides actionable insights. Here’s how you can structure your data:
- Energy Metrics: Track energy consumption in kilowatt-hours (kWh) at 15-minute intervals and monitor real-time power usage in watts. This helps identify peak demand periods.
- Occupancy Data: Use motion and daylight sensors to gather occupancy information. Displaying this data alongside energy usage helps facility managers pinpoint areas where lighting may be running unnecessarily. Adjusting schedules or sensor settings based on this insight can lead to energy savings.
- Environmental Data: Include ambient light levels and temperature readings to explain fluctuations in energy usage. For instance, shorter daylight hours during winter often lead to increased lighting consumption.
- System Status: Monitor the status of lamps, sensors, and communication systems. Indicators for failures or malfunctions ensure that data on the dashboard reflects accurate conditions.
Organizing data by zones, departments, or cost centers makes it easier for stakeholders to analyze and act on the information.
Secure Data and Maintain Quality
When connecting lighting systems to networks and dashboards, security should be a top priority. Here’s how to protect and maintain the quality of your data:
- Isolate Networks: Place lighting controls on a dedicated network segment to reduce vulnerabilities.
- Encrypt Data: Use encryption protocols like TLS 1.3 to secure data during transmission. While most modern systems support encryption, older setups may require additional measures.
- Access Control: Enforce role-based permissions, regularly update passwords, and implement multi-factor authentication to restrict unauthorized access.
- Data Validation: Set up processes to flag anomalies, like a sudden drop in energy consumption to zero, which could signal a sensor failure or communication issue.
- Backup and Redundancy: Ensure continuous data collection with backup systems. Local storage at lighting control panels can buffer data during network outages, syncing with dashboards once connectivity is restored.
Install Smart Lighting Controls and Connect to Dashboards
Set up smart lighting controls and link them to your energy dashboard. Make sure the electrical, network, and software components are properly aligned and functional before moving forward.
Install and Configure Controls
Start by installing smart lighting controls like dimming controllers, occupancy sensors, and daylight sensors. For commercial spaces, licensed electricians are typically required for electrical installations, while facility management teams with basic technical skills can handle configuration tasks.
Place dimming controllers in designated zones and set them to energy-saving levels right away. This ensures immediate benefits while leaving room for later adjustments.
Calibrate occupancy and daylight sensors by setting timeouts and brightness thresholds that suit each area's needs. Fine-tune these settings during installation to reflect actual usage patterns.
Create lighting schedules based on your facility's operating hours. Include buffer times for early arrivals and late departures. For example, schedule lights to turn on slightly before opening hours and switch off after closing. On weekends, you can reduce lighting levels to support only essential operations.
Connect to Energy Dashboards
After installing and configuring the controls, connect them to your energy dashboard. The connection process will depend on whether you’re using a cloud-based or on-premises system.
For cloud-based dashboards, set up network access through your facility’s firewall. Most systems require standard outbound HTTPS connections, but some may need additional setup for real-time data streaming. Work with your IT team to ensure secure and reliable connections.
Assign unique identifiers to each lighting zone to make the dashboard easier to navigate.
Adjust data collection intervals based on your dashboard’s capabilities. During the initial optimization phase, use shorter intervals for detailed monitoring. Later, switch to longer intervals to balance data detail and storage needs. Compare the dashboard readings with utility meter data and on-site manual measurements to confirm accuracy. Address any discrepancies that could point to calibration or communication issues.
Enable automated alerts to flag unusual energy patterns, like unexpected power usage during off-hours or sudden drops in consumption. These alerts should notify both facility management and maintenance teams via email or text.
Once the connection is verified, proceed with a pilot deployment to test the system.
Test and Run Pilot Deployment
Instead of rolling out the system across the entire facility at once, start with a pilot deployment in a small, representative area. Choose zones with varying usage patterns - like a busy lobby and a quieter office space - to evaluate performance under different conditions.
Run the pilot for several weeks, closely monitoring dashboard data and gathering feedback from occupants. Track key metrics such as energy usage, occupant comfort, and system reliability. Document any issues related to sensor calibration, scheduling, or data communication.
Use the insights from the pilot to fine-tune settings for each space.
Test the dashboard’s reporting features by generating regular energy reports. Share these reports with facility stakeholders, ensuring they are clear, accurate, and offer actionable insights for energy management.
Quickly address any connectivity issues to maintain data quality and system reliability. Once the pilot shows successful results, create a phased rollout plan. Expand the system gradually, covering one floor or section at a time to ensure consistent performance and quality throughout the facility.
Optimize and Maintain the System
Once your system is installed and operational, the work doesn’t stop there. To keep those energy savings rolling in, regular monitoring and fine-tuning are key. A well-maintained system not only saves energy but also ensures long-term performance.
Review Dashboard Data
Your system's dashboard is a treasure trove of real-time data. Use it to identify energy spikes and wasted consumption. Pay close attention to peak usage times, unexpected energy surges, and seasonal variations that could impact your lighting schedules.
For example, if your dashboard reveals that conference room lights are consistently on late at night, it might be time to tweak occupancy sensor settings or update automation schedules. Similarly, comparing energy usage across similar zones can uncover inconsistencies. If two identical spaces show vastly different consumption patterns, it could point to issues like miscalibrated sensors or faulty equipment. Regularly generating energy reports can help you track these trends and guide your next steps.
Adjust Control Settings
Your dashboard insights are only useful if you act on them. Adjusting control settings based on actual usage patterns can lead to immediate improvements in energy efficiency.
Take occupancy sensors, for instance. Their timeout settings need to strike a balance between efficiency and comfort. If lights turn off too quickly, it can frustrate occupants. If they stay on too long, energy is wasted. Test these settings and gather feedback to find the sweet spot. Seasonal recalibration can also help maintain optimal performance.
Dimming levels should be tailored to the needs of each space. Conference rooms, for example, might benefit from adjustable lighting scenes for different activities, while hallways can operate at lower levels during off-peak hours. Similarly, weekend and holiday schedules can be adjusted to maintain only essential lighting, reducing unnecessary energy use in unoccupied areas.
Creating customized profiles for different zones - like production areas, offices, or loading docks - further refines energy use. By continuously fine-tuning these settings, your system can consistently hit its efficiency targets.
Regular Maintenance and Reporting
Routine maintenance keeps your system running smoothly and ensures long-term savings. Dust and debris can interfere with sensor accuracy, so regular cleaning is a must. Network connectivity should also be checked frequently to ensure that data is being transmitted correctly to your dashboard.
Tracking energy savings is another crucial step. Monitor monthly and annual consumption, as well as cost reductions, to validate your system's performance. These records not only highlight the benefits of your smart lighting system but also provide solid data to support future energy efficiency projects.
Compliance is equally important. Regularly verify that your system meets local energy codes and utility requirements. Keeping detailed records of any upgrades or adjustments can also help you qualify for incentive programs.
Don’t overlook the human element. Occupant feedback can reveal issues that data alone might miss. Short surveys or regular check-ins can help you identify comfort or performance concerns before they become bigger problems.
Finally, plan for the future. Monitor the performance of control components and schedule replacements before they fail. This minimizes disruptions and keeps your system running efficiently. Annual performance summaries that document energy savings, cost reductions, and system reliability can also help you plan upgrades and improvements. Regular maintenance and clear reporting ensure that your smart lighting system continues to deliver value over time.

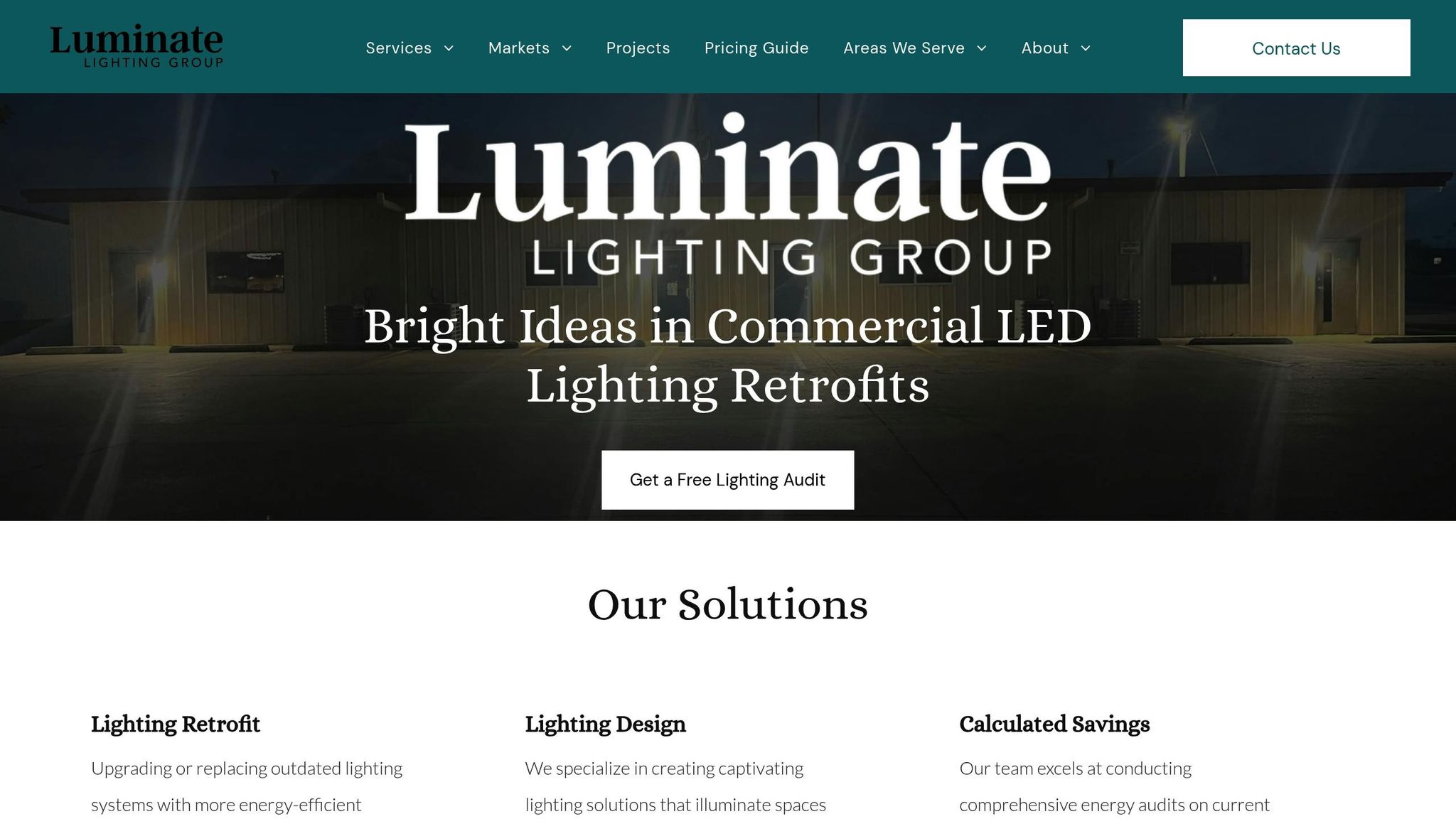

How Luminate Lighting Group Can Help
Combining smart lighting controls with energy dashboards requires a deep understanding of both lighting technology and energy management systems. The right expertise ensures a smooth integration, building on the energy management strategies already discussed.
Custom Lighting and Controls Solutions
Luminate Lighting Group specializes in designing and implementing lighting systems that integrate seamlessly with energy dashboard platforms. Their tailored solutions address operational needs while enhancing energy efficiency.
Their process starts with a detailed understanding of how your facility operates. Different areas require different lighting strategies - manufacturing floors need consistent, high-output lighting, whereas office spaces benefit from adjustable lighting scenes to suit various activities throughout the day. Luminate considers these unique needs, designing systems where fixtures and controls work together as a cohesive unit.
Luminate creates integrated systems where LED fixtures, sensors, and communication protocols operate in harmony. This ensures reliable data transmission to your energy dashboard while avoiding compatibility issues that can arise with fragmented installations.
Their expertise also includes selecting the right communication protocols for your system. Whether your energy dashboard uses BACnet, Modbus, or wireless options like Zigbee, Luminate ensures effective communication between your lighting controls and existing building management systems. This integration enables real-time monitoring and automated adjustments based on occupancy and energy consumption patterns.
Energy Audits and Compliance Support
Luminate conducts in-depth lighting audits to identify inefficiencies and highlight opportunities for upgrades. Their energy and cost analysis examines your current energy use, lighting expenses, and the savings potential of energy-efficient LED systems with smart controls. This analysis provides the foundation for configuring your energy dashboard and setting realistic performance goals.
Compliance is a key part of their audit process. Luminate ensures that any proposed upgrades meet ASHRAE 90.1 standards and adhere to local energy codes. This is especially critical for facilities aiming to improve energy efficiency while staying compliant with regulations. Their expertise simplifies navigating complex code requirements, particularly when advanced controls are involved.
The results of these audits serve as a blueprint for setting up your energy dashboard. By pinpointing areas of high energy use and identifying peak usage times, Luminate helps determine which data points and metrics will be most valuable for your energy optimization goals. This targeted approach ensures your dashboard focuses on what matters most.
Complete Projects with Incentive Guidance
From design to integration and beyond, Luminate manages every aspect of your project. They streamline the entire process, eliminating the headaches of coordinating multiple contractors for lighting, controls, and energy management systems.
Their project management includes collaborating directly with your energy dashboard provider. Luminate works with vendors to configure data feeds, establish communication protocols, and ensure all performance metrics are accurately captured and displayed. This hands-on approach minimizes integration challenges and ensures your system is operational from day one.
Luminate also provides expert guidance on utility rebates and tax incentives. They help clients qualify for rebates that significantly offset project costs, particularly for smart lighting upgrades that demonstrate measurable energy savings. Additionally, they assist with navigating 179D tax deductions, offering financial benefits for energy-efficient improvements in commercial buildings.
Their support extends to meeting performance verification requirements for utility programs. Many rebate programs require ongoing monitoring and reporting, and Luminate helps configure your energy dashboard to capture the necessary data. This ensures you can easily generate reports to maintain eligibility for incentive benefits over time.
After installation, Luminate offers training for your facility management team. They teach your staff how to interpret dashboard data and make adjustments to optimize system performance. This knowledge transfer ensures that the energy savings achieved through smart lighting integration are sustained and refined as actual usage patterns emerge. Their post-installation support aligns with the continuous optimization strategies discussed earlier, helping you maximize long-term results.
Conclusion
Bringing smart lighting controls together with energy dashboards is changing the game for commercial energy management. This integration offers real-time insights and automated adjustments that help cut costs and boost operational efficiency. Here's a quick overview of the steps and benefits involved.
Key Takeaways
Successfully integrating smart lighting with energy dashboards takes careful planning and execution. Start with detailed lighting audits to uncover inefficiencies and establish benchmarks for future energy performance. Understanding your current setup will help you pinpoint which systems need upgrades and which communication protocols - like BACnet or Modbus - will work best with your energy dashboard.
A clear integration framework is essential for seamless communication between systems. Choosing the right protocols and setting clear data points ensures smooth operation while maintaining system security. This foundation not only protects your setup but also provides the actionable insights needed to make informed energy decisions.
During the installation phase, pilot deployments can help fine-tune the system, minimizing disruptions before rolling it out on a larger scale. This step also gives facility managers a chance to get comfortable with the new dashboard tools and controls.
Once the system is live, ongoing optimization is key to maximizing its value. Regularly reviewing dashboard data helps identify usage trends and new opportunities for energy savings. Adjusting control settings based on actual building occupancy and needs ensures the system stays efficient as conditions change.
Beyond cutting energy costs, smart lighting integration brings other perks. Better lighting quality and automation simplify facility management, and staying on top of energy code compliance becomes easier with detailed performance reports from your dashboard.
Next Steps
Ready to take the plunge? Start by assessing your facility's specific needs. Luminate Lighting Group offers free lighting audits for eligible commercial and industrial spaces, laying the groundwork for a smooth integration process.
Their team handles every step - from initial assessments to ongoing system optimization. Whether it’s LED retrofits, custom lighting designs, or energy management solutions, Luminate ensures your smart lighting controls integrate seamlessly with your chosen energy dashboard.
Reach out to Luminate Lighting Group to schedule your audit and see how smart lighting integration can lower your energy bills and streamline operations. They’ll evaluate your current setup, recommend integration strategies, and even guide you toward utility rebates and tax incentives to help offset costs.
FAQs
How can I tell if my facility is ready to integrate smart lighting controls with an energy dashboard?
To find out if your facility is ready to integrate smart lighting controls with an energy dashboard, the first step is to check if your building has a building automation system (BAS) that supports IP-based lighting protocols. This kind of system allows for real-time data collection, such as tracking energy consumption and occupancy patterns - both critical for smooth integration.
Another useful step is conducting a Smart Readiness Indicator (SRI) audit. This assessment evaluates your current infrastructure and highlights any necessary upgrades to ensure compatibility with smart lighting systems and energy dashboards. Tackling these aspects will help you improve energy efficiency and simplify operations in your building.
What are the benefits of integrating smart lighting controls with energy dashboards in commercial buildings?
Integrating smart lighting controls with energy dashboards in commercial buildings can lead to noticeable energy savings. These systems automatically adjust lighting based on factors like occupancy and natural light levels, which helps cut down on energy waste and reduces operational costs - a win-win for businesses aiming to be efficient.
Beyond the cost savings, these systems offer real-time data insights that can fine-tune lighting performance, create a more comfortable work environment, and even boost productivity. By using less energy, they also help shrink a building’s carbon footprint, aligning with sustainability goals and keeping businesses in line with energy regulations.
How does Luminate Lighting Group help businesses comply with regulations and take advantage of incentives when integrating smart lighting systems?
Luminate Lighting Group makes setting up smart lighting systems straightforward by managing critical tasks like lighting design, installation, permitting, and even rebate submissions. Their team ensures that businesses not only comply with energy codes but also take full advantage of available utility incentives.
They go a step further by offering on-site lighting assessments and energy audits. These evaluations help pinpoint inefficiencies and determine eligibility for rebates. By focusing on both compliance and energy efficiency, they deliver customized solutions that meet regulatory needs while supporting financial objectives.
