Uniformity vs. Light Distribution: Key Differences

Uniformity and light distribution are two central concepts in lighting design, especially for commercial and industrial spaces. Here's what you need to know:

• Uniformity measures how evenly light is spread across an area. It’s calculated as a ratio of minimum to average illuminance. Higher uniformity ensures consistent lighting, reducing shadows and glare, which is essential for safety and comfort.
• Light distribution defines how light spreads from a fixture, influencing the shape, direction, and reach of the light. This determines how effectively a space is lit and impacts fixture placement and energy efficiency.

Both are critical for creating safe, efficient, and functional lighting environments. While uniformity ensures even illumination, light distribution focuses on directing light where it’s needed most. Balancing these two factors is key to effective lighting design.

Quick Comparison:

Achieving the right balance between these two ensures better safety, productivity, and energy use in lighting projects.

What is Uniformity & How to Calculate It in DIALux Evo?

What is Light Uniformity

Light uniformity ensures consistent illumination across a space, minimizing bright spots and shadows. When lighting designers talk about uniformity, they aim to create lighting that feels balanced and natural.

How to Define and Measure Light Uniformity

Light uniformity is measured as a ratio of minimum to average illuminance in a specific area. Two primary formulas are used for this:

• General Uniformity (U0) = Emin / Eavg (minimum illuminance divided by average illuminance)
• Overall Uniformity (U1) = Emin / Emax (minimum illuminance divided by maximum illuminance)

A higher U0 ratio means better lighting consistency. For instance, if the minimum illuminance is 30 foot-candles and the average is 50 foot-candles, the U0 ratio would be 0.6. This falls within the acceptable range for many commercial settings. Office spaces generally require a U0 ratio between 0.6 and 0.8, warehouses function effectively with ratios between 0.4 and 0.6, and road lighting typically operates within 0.25 to 0.4.

Why Uniformity Matters in Commercial Lighting

Inconsistent lighting can negatively impact safety, productivity, and comfort. In offices, maintaining even lighting reduces eye strain and promotes productivity. A U0 ratio of 0.6 or higher is recommended for workstations, reading areas, and meeting rooms.

Sports facilities, on the other hand, require uniformity levels of 0.6 to 0.7 to ensure athletes can see clearly and perform safely. Similarly, warehouses and industrial spaces rely on even lighting for safe navigation, identifying obstacles, and reading labels.

What Affects Light Uniformity

Several factors influence how evenly light is distributed:

• Fixture Placement and Spacing: Poor spacing can create a "zebra effect" with alternating bright and dark areas. Properly spaced fixtures allow overlapping light patterns for smoother transitions.
• Beam Angle Selection: Narrow beam angles create focused light with sharp edges, while wider angles provide broader coverage with softer transitions. Choosing the right angle based on mounting height and spacing is critical.
• Optic Design and Lens Selection: Modern LED fixtures use advanced optics to improve uniformity. Combining multiple LEDs with different optics can enhance light distribution.
• Mounting Height: Higher mounting positions can improve uniformity by increasing the overlap of light patterns. However, they may require more powerful fixtures to maintain adequate illumination.
• Transition from HID to LED: HID fixtures often create intense light directly beneath them, leaving darker areas in between. In contrast, well-designed LED fixtures with multiple light sources can deliver more consistent illumination.
• Environmental Factors: Ceiling height, surface reflectance, and obstacles all affect light distribution. Light-colored ceilings and walls help spread light more evenly, while darker surfaces can create shadows.

Next, we’ll explore how these principles differ when considering light distribution in fixture design.

What is Light Distribution

Light distribution refers to the way a luminaire's beam spreads, its direction, and how far it effectively reaches. It’s not the same as uniformity, which measures how evenly light is spread across a surface. Understanding light distribution is a critical part of lighting design since it directly impacts visibility, energy use, safety, and the overall atmosphere of a space.

A key metric in light distribution is the point where the beam reaches 50% of its maximum luminous intensity. This measurement defines the beam's effective coverage area and plays a significant role in determining how fixtures should be positioned and spaced for the best results.

Light Distribution Basics

The shape of a fixture and the precision of its optical components - like lenses, reflectors, and refractors - are what determine light distribution. The Illuminating Engineering Society of North America (IESNA) measures a beam's spread by identifying the angle at which it reaches 50% of its maximum intensity. Meanwhile, the National Electrical Manufacturers Association (NEMA) classifies light distribution based on both horizontal and vertical beam spread, using a 10% intensity threshold.

Several factors influence the final light pattern, including the type of optics used, the height and angle at which fixtures are mounted, the distance between fixtures, and surrounding environmental conditions like surface reflectivity and obstructions.

Common Light Distribution Patterns

The lighting industry relies on standardized distribution types to ensure fixtures perform consistently across applications. The IESNA defines five primary distribution patterns, each suited to specific needs:

• Type I produces a narrow, oval-shaped beam, perfect for lighting long, narrow paths from a central position.
• Type II provides a slightly broader beam, making it great for wider walkways or bike paths when mounted along the side.
• Type III offers a balanced lateral spread, ideal for roadways and parking lots when fixtures are placed along the edges.
• Type IV focuses on a wide forward throw, casting light farther than the fixture's height, making it suitable for perimeter lighting and sports courts.
• Type V delivers uniform, circular illumination in all directions, perfect for large, open spaces like intersections and stadiums.

While IESNA patterns are mainly used for area and roadway lighting, NEMA classifications - focused on both horizontal and vertical beam spreads - are often applied to floodlights and spotlights.

How Light Distribution Affects Fixture Placement

The choice of light distribution pattern dictates how fixtures are arranged and mounted. For example, larger spaces benefit from wider distributions, while smaller, more focused beams work better in confined areas to minimize light waste and glare. Mounting height is another crucial factor. Higher-mounted lights generally require wider beam angles to cover more ground, while lower-mounted fixtures are better suited for narrower beams to avoid overlapping light and wasting energy.

Spacing between fixtures also varies based on the distribution type. Type I fixtures, with their narrow beams, need to be placed closer together, while Type V fixtures can cover larger areas with fewer units, improving energy efficiency. Accessories like shields, baffles, and louvers can further refine light distribution by reducing glare and spill light, enhancing both comfort and precision.

Photometric studies are invaluable for predicting how fixtures will perform in real-world conditions. These studies allow designers to model light distribution and coverage before installation, ensuring the best possible results. With modern LED technology, achieving precise light placement and reducing energy consumption has become even easier.

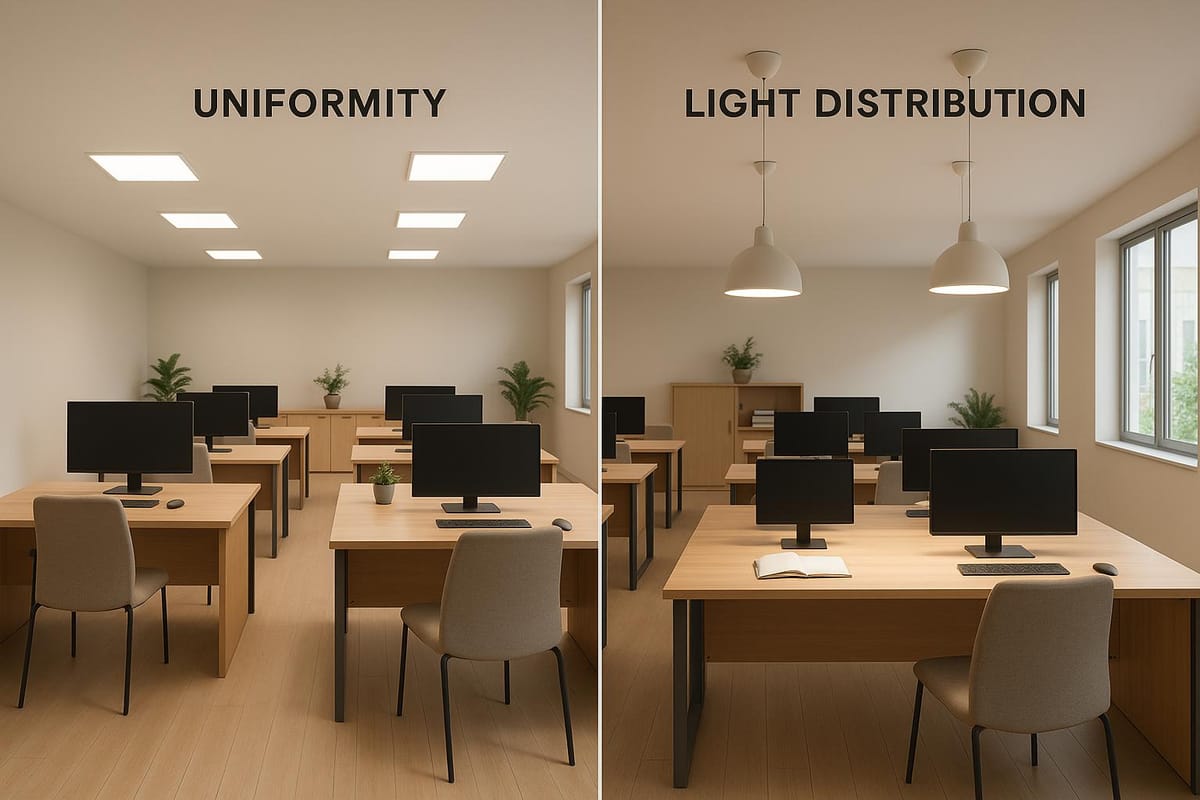

Main Differences Between Uniformity and Light Distribution

Uniformity and light distribution are both essential to effective lighting design, but they address different aspects of illumination. While uniformity ensures consistent light levels across an area, light distribution focuses on directing and shaping the light to meet specific needs.

Uniformity vs. Light Distribution Comparison

Here’s a closer look at how these two concepts differ in terms of their characteristics and applications:

This breakdown highlights how each approach serves unique purposes in lighting design. Understanding these differences helps guide decisions for specific projects.

For example, achieving high uniformity with LED lighting often requires nearly twice as many fixtures compared to HPS systems, which can significantly impact initial costs.

When to Focus on Uniformity vs. Distribution

The choice between prioritizing uniformity or distribution depends largely on the specific needs of the space and its intended use. Each aspect brings distinct benefits that align with different applications.

Prioritize uniformity in spaces where safety, visibility, and comfort are critical. Warehouses, for instance, need consistent lighting to help workers navigate safely and locate items without dealing with harsh shadows or glaring hotspots. Similarly, office environments benefit from uniform lighting to reduce eye strain and create a comfortable atmosphere, while sports facilities require evenly distributed light across the playing field to ensure safety and performance.

Focus on distribution when precise control over light placement is essential, especially to improve energy efficiency. Streetlights, for example, rely on carefully designed distribution patterns to illuminate roadways effectively from strategically placed fixtures, even if the light isn’t perfectly even across the entire area. Retail displays and task-specific workstations also benefit from targeted lighting, where directing light to specific areas takes precedence over uniformity.

Balancing these two elements is key. Maximizing uniformity doesn’t automatically result in optimal distribution, and vice versa. Proper fixture spacing and aiming are crucial to achieving both goals. Even a fixture with excellent distribution capabilities can create uneven lighting if positioned incorrectly. Similarly, focusing solely on uniformity can lead to over-lighting and wasted energy. Modern LED systems, with their advanced optics, allow for greater control over both uniformity and distribution, but achieving the right balance still requires careful planning.

How This Applies to Commercial Lighting Projects

Balancing uniformity and light distribution is key when transforming lighting concepts into practical commercial applications. These principles directly influence energy efficiency, compliance with safety standards, and overall operating costs - factors that can make or break a project's success.

In commercial spaces like warehouses, offices, or municipal facilities, lighting systems must provide consistent illumination for safety while also targeting light distribution for efficiency. Poorly designed lighting can lead to wasted energy, regulatory issues, and safety risks, often resulting in expensive retrofits. On the other hand, well-planned systems that strike the right balance can cut energy consumption by 50–80% in many cases, while also meeting regulations and improving workplace safety.

Using Photometric Analysis to Achieve Balance

Photometric analysis is a powerful tool for bridging the gap between lighting theory and practical design. It enables designers to fine-tune both uniformity and light distribution before installation. Tools like DIALux EVO and AGi32 allow for simulations of real-world conditions, helping designers optimize fixture placement by accounting for variables like ceiling height, surface reflectance, and potential obstructions. This process pinpoints areas where uniformity might falter or where light distribution needs improvement.

The process begins with a detailed site assessment, feeding data into photometric software to experiment with fixture types, spacing, and mounting heights. This is especially useful in complex environments, such as manufacturing plants or retail spaces, where lighting needs vary significantly.

Photometric analysis also highlights opportunities for daylight harvesting. By using photo sensors and dimming equipment, electric lighting can adjust automatically based on the availability of natural light. Additionally, advanced control systems often emerge from this analysis. For example, over 99% of fixtures listed on the DLC's SSL Qualified Products List support dimming, enabling dynamic adjustments based on occupancy, daylight, or schedules to reduce energy waste.

These insights help create customized lighting solutions tailored to the unique needs of commercial spaces.

Luminate Lighting Group's Tailored Solutions

Luminate Lighting Group takes a custom approach to commercial lighting by integrating uniformity and light distribution principles into every project. Their comprehensive solutions cover everything from initial energy audits to post-installation support.

The process starts with on-site lighting audits aimed at uncovering inefficiencies and areas for improvement. These audits go beyond basic energy metrics, evaluating fixture placement to address issues with uniformity and distribution while ensuring compliance with energy codes and safety standards.

Following the audit, Luminate Lighting Group develops detailed photometric layouts to optimize lighting for the specific application. Their designs consider factors like work tasks, safety needs, aesthetic goals, and energy efficiency targets. This ensures consistent illumination where it's needed most, while directing light efficiently to minimize waste.

Their turnkey LED retrofit solutions handle every step of the process, from design and installation to permitting and rebate applications. Licensed electricians ensure full compliance with codes while minimizing disruptions to daily operations. This streamlined approach avoids the coordination challenges that often arise when trying to balance uniformity and distribution.

Clients of Luminate Lighting Group have reported energy savings of 50–80% after upgrading to LED systems, with daylight harvesting strategies contributing an additional 30–40% in savings. The company also helps clients secure utility rebates and incentives, which can shorten payback periods and boost return on investment. Post-installation, they provide thorough system testing to ensure that uniformity and distribution goals are met, along with warranty and maintenance guidance.

Luminate Lighting Group also excels in implementing advanced control strategies to maintain optimal lighting conditions while cutting energy costs. Occupancy sensors, for instance, ensure lights operate only when needed, reducing wear and maintenance expenses. Meanwhile, daylight harvesting systems dynamically adjust electric lighting based on natural light levels, and scheduling controls optimize energy use for different operational periods.

Conclusion

Commercial lighting success lies in achieving a balance between uniformity - providing consistent and safe illumination - and targeted light distribution that ensures light reaches exactly where it’s needed.

Take, for example, real-world applications. In Logroño, Spain, a lighting project reached uniformity values as high as 0.8 while keeping power usage between just 19 and 35 watts. This resulted in over 70% energy savings. Similarly, a facility in Malaysia improved operational accuracy by reducing component swap errors by 21%. They accomplished this by integrating task lighting to minimize shadows, while also cutting lighting energy consumption by more than 40% in just six months.

"Good lighting isn't about using more light, but using it better. And that begins with understanding the importance of well-distributed illumination." - ATP Lighting

To meet commercial design standards, minimum uniformity levels are required - 0.65 for spaces with continuous operations and 0.4 for corridors and staircases. At the same time, strategic light distribution is essential to avoid wasting energy or creating safety hazards. Poor lighting not only increases energy expenses but also compromises safety and efficiency.

These examples highlight why precise control over both uniformity and distribution is critical, challenges that Luminate Lighting Group addresses with precision. Through energy audits, photometric analysis, and custom LED retrofits, they create tailored solutions. By considering factors like mounting heights, fixture angles, surface reflectance, and specific task needs, Luminate Lighting Group optimizes lighting systems to enhance energy savings, safety, and overall performance.

Effective lighting design isn’t just about cutting costs - it’s about improving safety, productivity, and compliance while creating better environments for everyone. When facility managers understand how uniformity and light distribution work together, they can make smarter decisions that benefit both their budgets and the well-being of their spaces.

FAQs

Should I focus on light uniformity or light distribution for my commercial lighting project?

When deciding between prioritizing light uniformity or light distribution, it all boils down to the purpose of your space and its unique lighting requirements.

For spaces like warehouses, industrial facilities, or sports arenas, light uniformity is key. Consistent and even lighting minimizes shadows, reduces glare, and enhances visibility - critical factors for safety and productivity.

In contrast, light distribution is more important in places like retail stores or display areas. Here, the goal is to draw attention to specific spots or create a visually appealing atmosphere by directing light precisely where it’s needed.

Striking the right balance depends on your project’s functional needs and aesthetic goals. Luminate Lighting Group specializes in crafting custom solutions tailored to your requirements, ensuring energy efficiency and compliance with energy regulations.

How can I enhance light uniformity in my current lighting setup?

To achieve a more even distribution of light in your setup, start by tweaking the placement of your fixtures. Proper positioning can reduce overly bright or dim areas. Make sure the ceiling height and beam angles are set to allow for a balanced spread of light. Using diffusers can also help by softening and dispersing the light more effectively.

Another helpful step is reviewing your lighting grid to pinpoint any uneven spots. If needed, consider upgrading to LED fixtures with advanced optics. These fixtures offer improved beam control, making them a great choice for large spaces like warehouses, parking lots, or commercial environments.

What is photometric analysis, and how does it improve uniformity and light distribution in lighting design?

Photometric analysis involves using computer simulations to study how light from fixtures is emitted and distributed within a space. It examines key factors like brightness, evenness, and coverage, allowing designers to refine light distribution and uniformity before any installation takes place.

This process ensures fixtures are placed in the best possible positions, avoiding problems like light spill or uneven lighting. It also helps meet industry lighting standards, resulting in a lighting setup that's not only efficient and functional but visually appealing and tailored to the project's unique requirements.
